Zenit ZEN-DRSTEEL37MA Submersible Drainage Pump

$540.00

SKU: ZEN-DRSTEEL37MA Categories: ,

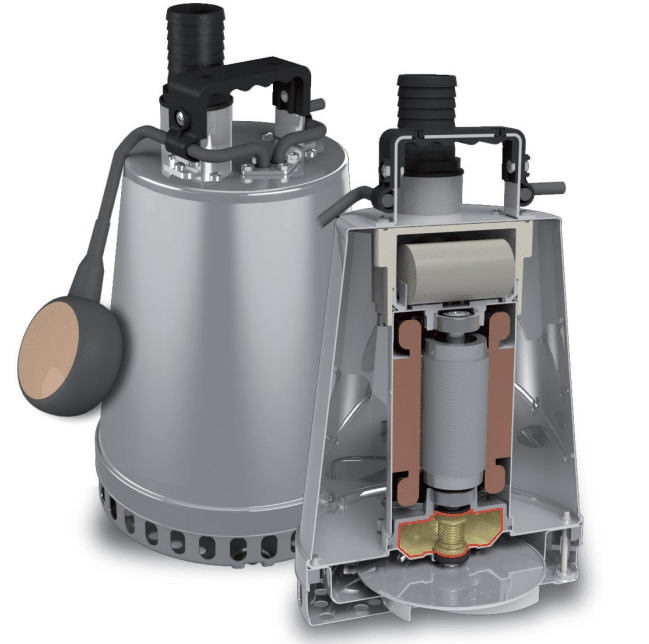

Zenit ZEN-DRSTEEL37MA Submersible Drainage Pump

Drainage pump in 304SS, complete with twin mechanical seals in oil bath and through motor cooling which guarantees motor cooling even at low pumping levels. Strainer base can be converted to allow pumping down to 5mm for special applications.

The pump is characterised by:

  • For clean water containing solids up to 10mm
  • For draining rooms or emptying tanks
  • For water from ponds, streams or pits and for rainwater collection.

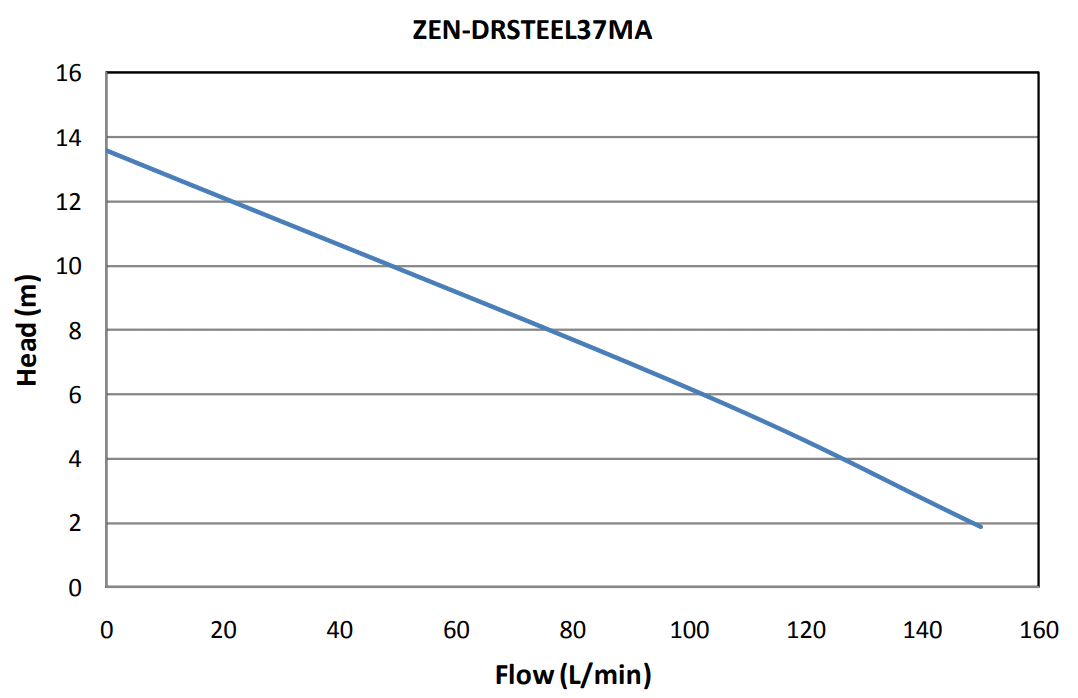

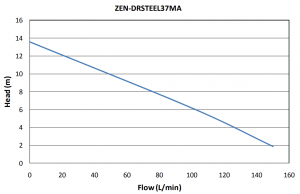

  • Max head 13.6m
  • Max flow 150 l/min
  • 370W

Liquid:
Clean water temperature range: 2-35°C

Materials:

Pump casing, body: Chrome-nickel steel AISI 304
Strainer, Impeller: Chrome-nickel steel AISI 304
Shaft: AISI 420
Seal (x2): Silicon carbide/graphite alumina mechanical seals in oil chamber
Seal (x1): V-ring in direct contact with the liquid

Installation:

Maximum operating temperature: 40°C
Maximum immersion depth: 10m
Outlet: 1¼” BSPF

Electrical data:
Rated voltage: 240V
Rated output: 0.37 kW (370W)
Horse Power: 0.5HP
Mains frequency: 50 Hz
Current: 3.1 amps
Capacitor: 8uF
Motor duty: Continuous
Motor type: Asynchronous
Motor protection: In-built thermal overload
Ingress protection: IP 68
Insulation class: F
Power cable length: 10 m
Net weight: 6.3 kg
Dimensions: 170Ø x 300H (mm)

2 Year Zenit Pump Warranty – Parts & Labour
