Zenit ZEN-DGSTEEL55MA Submersible Vortex Drainage Pump
Drainage pump in 304SS, complete with twin mechanical seals in oil bath and through motor cooling which guarantees motor cooling even at low pumping levels. Designed for storm water, sewerage plants, livestock farms, car washes, hydro-sanitary applications.
The pump is characterised by:
- For clean or slightly dirty water, containing solids up to 38mm
- For sewerage plants, livestock farms, car washes, hydro-sanitary applications.

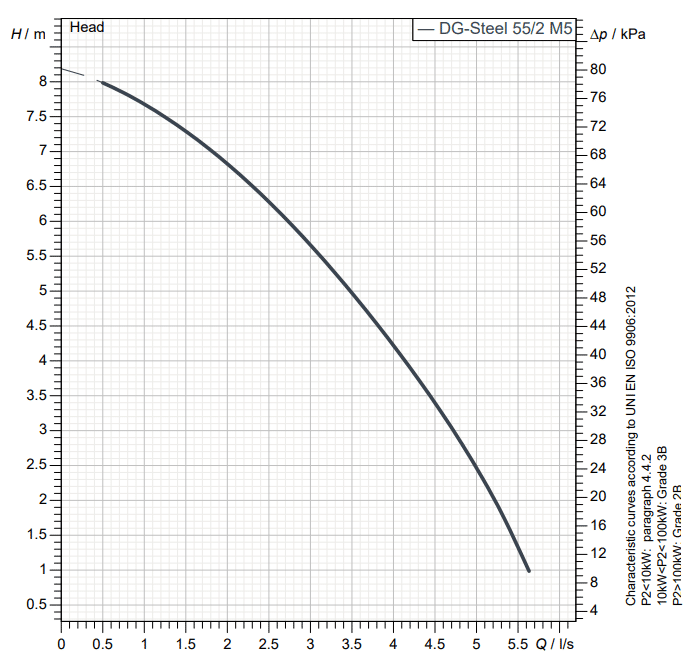

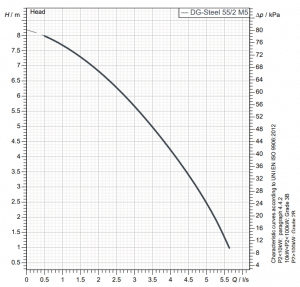

- Max head 8.1 m
- Max flow 330 l/min
Liquid:
Clean water temperature range: 2-35°C
Materials:
Pump casing, body: Chrome-nickel steel AISI 304
Strainer, Impeller: Chrome-nickel steel AISI 304
Shaft: AISI 420
Seal (x2): Silicon carbide/graphite alumina mechanical seals in oil chamber
Seal (x1): V-ring in direct contact with the liquid
Installation:
Maximum operating temperature: 40°C
Maximum immersion depth: 10m
Outlet: 1½” BSPF
Electrical data:
Rated voltage: 240V
Rated output: 0.55 kW (550w)
Horse Power: 0.75HP
Mains frequency: 50 Hz
Current: 4.3 amps
Capacitor: 14uF
Motor duty: Continuous
Motor type: Asynchronous
Motor protection: In-built thermal overload
Ingress protection: IP 68
Insulation class: F
Power cable length: 10 m
Net weight: 7.7 kg
Dimensions: 215Ø x 405H (mm)
2 Year Zenit Pump Warranty – Parts & Labour

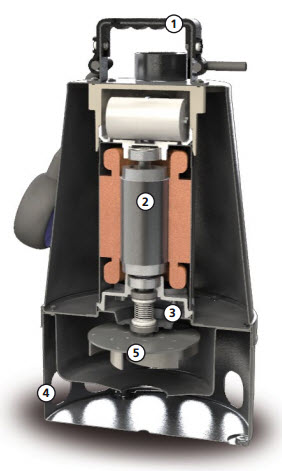

Zenit DG Steel Features
.
1. Lifting handle
Chrome-nickel steel AISI 304.
2. Cooling system
As for the internal ricycle pumped liquid system, the motor cooling is guaranted even if the pump is partially covered by the liquid.
3. Mechanical seal
Three mechanical seals; double seal (SiC-Al) in oil sump with food-grade oil lubrication, one V-ring in direct contact with the liquid.
4. Strainer
Chrome-nickel steel AISI 304 Max free passage 40 mm.
5. Impeller
Chrome-nickel steel AISI 304.
