GRAF CARAT 10,000LT Underground Water Tank

GRAF CARAT 10,000LT Underground Water Tank


  • $ 0.00
SKU: CARAT10000 Categories: , ,


GRAF Carat XL 10,000LT Underground Water Tank

  • Optimal tank geometry and statics due to CAD product development – equals highest stability
  • Unique fitting accuracy of the components
  • Dome opening with stainless steel profile for precision fit and secure mounting
  • Consistent quality due to constant production monitoring
  • Vehicle or lorry-bearing (combined with Telescopic dome shaft with cast iron lid or TRUCK)
  • Groundwater stable up to the middle of the tank thanks to extremely stable construction
  • Can be expanded as required
  • Easy installation due to low net weight
  • The tank can also be used as a rainwater collection tank after cleaning
  • 15 years warranty
  • Larger connection fittings on request
  • Tank Weight: 456kg

Need help? Feel free to call us on (03) 8795 7715.

Additional information

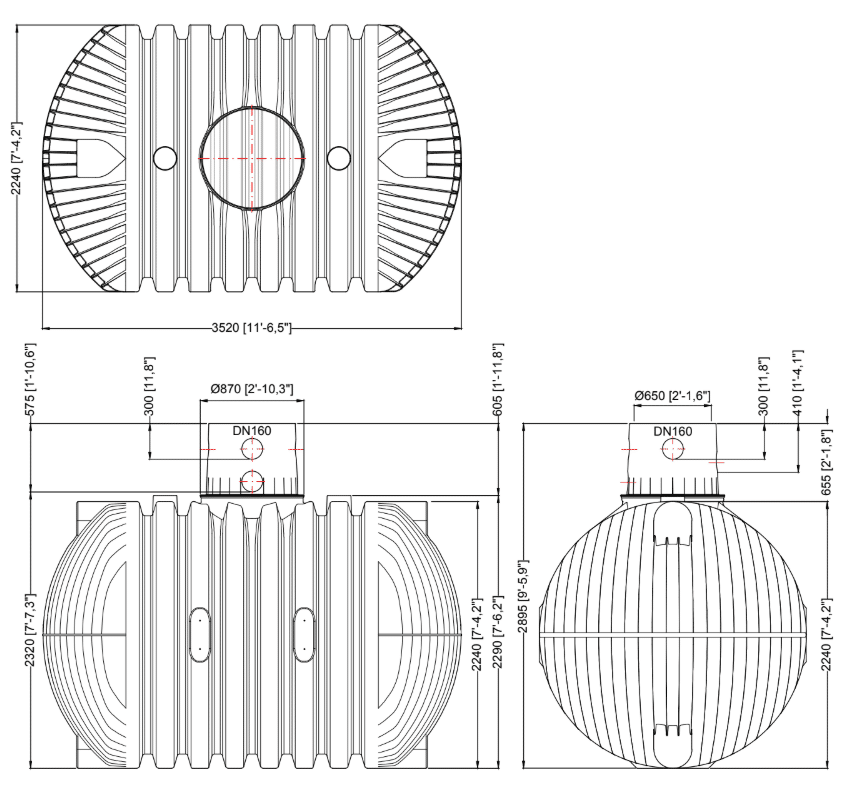

Dimensions (mm)

3520L x 2240W x 2895H


15 Years Manufacturers Warranty
