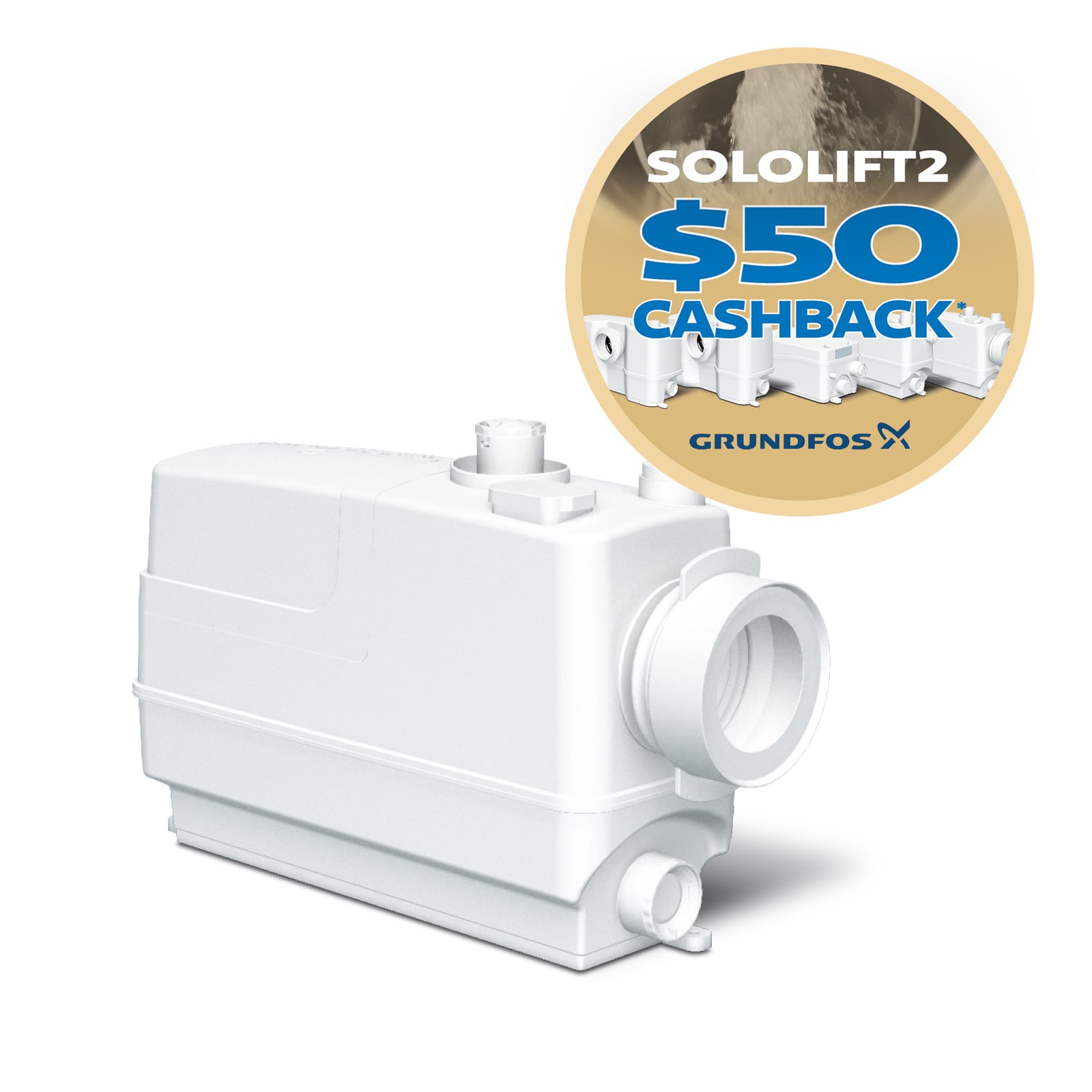

Grundfos Sololift2 CWC-3 Lifting Station – 97775326
Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:
- wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.
|
|
Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with
- Cable with or without plug (see technical data)
- Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
- integrated non return valve
- Dry and high performance motor unit incl. thermal protection, pressure switch and controller
- DN100 toilet connection hose
- Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
- Slot for an alarm board with buzzer (accessory)
- Manual anti clogging function and separate drain connection for service
- Venting valve with overflow protection
- Uplift fixation clips
|
|
Product name |
SOLOLIFT2 CWC-3 |
Product No |
97775326 |
EAN number |
5710624187357 |
Price |
|
Technical
Head max |
8.5 m |
Approvals on nameplate |
CE,TR,VDEEMV,VDE,MORO |
Curve tolerance |
ISO9906:2012 3B |
Materials
Installation
Pump inlet |
32/36/40, 36/40/50, DN 100 |
Pump outlet |
22/25/28/32/36/40 |
Number of leads |
3X0,75MM2 |
Liquid
Liquid max temp |
50 °C |
Density |
998.2 kg/m³ |
Electrical data
Power input – P1 |
620 W |
Mains frequency |
50 Hz |
Rated voltage |
1 x 220-240 V |
Rated current |
3 A |
Cos phi – power factor |
0.92 |
Rated speed |
2800 rpm |
Enclosure class (IEC 34-5) |
IP44 |
Insulation class (IEC 85) |
F |
Thermal protec |
THERMIK S06-150-05 |
Length of cable |
1.2 m |
Cable type |
H05VV-F-3G |
Type of cable plug |
AUSTRALIEN |
Others
Net weight |
7.94 kg |
Gross weight |
9.69 kg |
Product range |
Australia |
Country of origin |
DE |
Custom tariff no. |
8413709062 |
